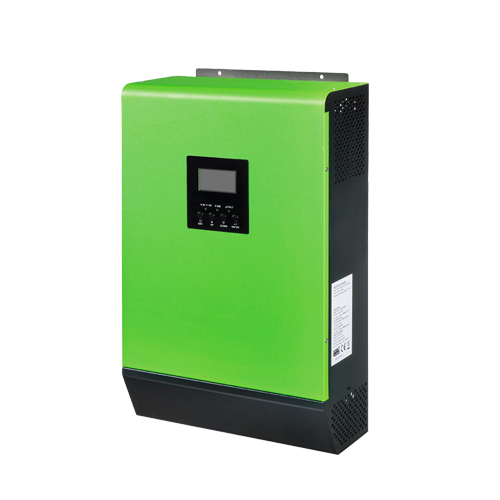

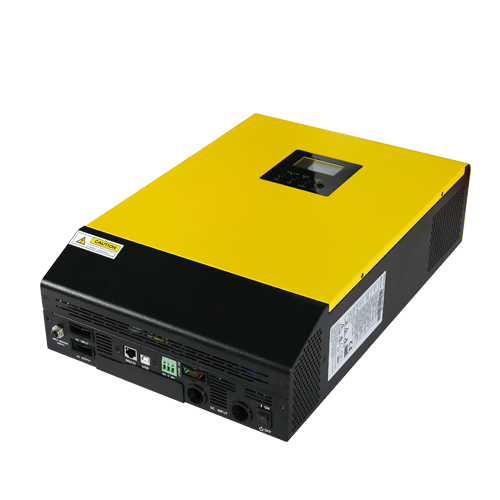

5000W On/Off Grid Inverter with Energy Storage Parallel to 45kW

Item No.: SRM034
It is a flexible & intelligent energy storage solar inverter with a wide range of MPPT Voltage. Combining functions of off grid and on grid. During the daytime, solar can run your home appliances and if there is extra solar power, will feed-in to the grid
Description Specification
This is a flexible and intelligent energy storage solar inverter with a wide range of MPPT Voltage. Combining functions of off grid and on grid. During the daytime solar power can run your home appliances and if there is extra solar power it will feed-in to the grid or you can choose to save them on the battery to backup when power failure or nighttime.

Features:
  1. Pure sine wave output
  2. Self-consupmtion and Feed-in to the grid
  3. Programmable supply priority for PV, Battery or Gird
  4. User-adjustable charging current and voltage
  5. Programmable mulitple operation modes: Grid-tie, off-gird and gird-tie with backup
  6. Monitoring software for real-time status display and control
  7. Parallel operation up to 9 units
  8. Battery Independent system





A PROFESSIONAL FACTORY
Foshan Sunremain Technology Co.,Ltd is an national creative high-tech enterprise, specialized in R&D, manufacturing and marketing of high reliable off grid solar inverters, power inverter mppt solar controllers, ups systems and solutions. Our factory has passed ISO quality management system certification.
We try our best to meet customers' expectations in terms of product quality, customer service and on-time delivery, strictly following the principles of "faithfulness, passion, professional care" and "mutual benefits". “Sunremain”, a believable brand, will provide you with the best quality, the lowest price, punctual shipment and cordial service.
Model HYG 5032
Max.PV Array Power 5000W
Rated Output Power 5000W
Maximum PV Array Open Circuit Voltage 450VDC
MPPT Range @Operating Voltage 120 VDC~430 VDC
MPPT Tracker Nunmber 1
GRID-TIE OPERATION
GIRD OUTPUT(AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184-264.5VAC or 195.5-253 VAC(Selectable)
Nominal Output Current 21.7A
Power Factor 0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC) 0.95
OFF-GRID,HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 50Hz/60Hz(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240/VAC
Output Waveform Pure sine wave
EfficiencyDC toAC 0.93
BATTERY&CHARGER
Nominal DC Voltage 48VDC
Maximum Solar Charge Currnet 80A
Maximum AC Charge Currnet 80A
Maximum Charge Currnet 80A
GENERAL
PHYSICAL
Dimension,D*W*H(mm) 120*295*468
Net Weight(kgs) 12
INTERFACE
Paralle Function Yes,9 Units

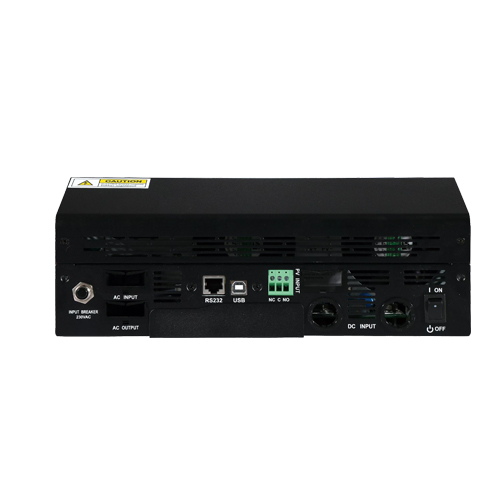

Communication Ports USB,RS-232 and dry contact
ENVIRONMERNT
Humidity 0~90%RH(Non-condensing)
Operating Temperature -10 to 50
