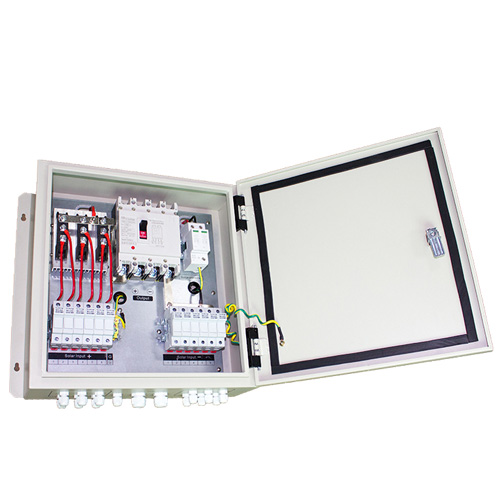

Photovoltaic junction box IP65 500v 4 6 8 10 string pv combiner box for solar panel system

Name: Photovoltaic junction box IP65 500v 4 6 8 10 string pv combiner box for solar panel system
Brand: www.sunremainpower.com
SKU: SRM029
Availability: InStock
Rating: 5 (1 reviews)

Item No.: SRM029

In order to reduce the connection between the solar PV array and the inverter, improve the reliability of the system, and facilitate the installation and maintenance of the system, it is generally necessary to add a combiner box between the PV module and

INQUIRY

Description

FEATURES:

Two sets of independent photovoltaic array input/output, maximum open circuit voltage 500V

Multiway photovoltaic array input, single way input array maximum current of 10A

Single way photovoltaic array to join the high-voltage fuse protection,counter-attack protection

Photovoltaic special high voltage lightning protection device protection

Photovoltaic special high voltage circuit breaker control output;

Meet outdoor installation requirements, protection class IP65

Model	H4T	H6T	H8T	H10T
Input data
PV array input numbers	4	6	8	10
Max single PV array current	10A
Single PV array fuse	10A
Single PV array wire size	PG7,4mm2
Output data
Output numbers	2
Max output current	20A/each way, total 40A	30A/each way, total 60A	40A/each way, total 80A	50A/each way, total 100A
Each way output wire size	PG16,each way 8mm2	PG16,each way 10mm2	PG16,each way 10mm2	PG16,each way 12mm2
Max output voltage	500VDC
DC output circuit breaker	yes
Others data
protection	IP65
Temperature range	-30℃ ~ +60℃
Reference weight(N.W/G.W.)	5.3/9.3	8.4/12.9	9.5/14.3	10.8/15.6
Machine size(D X W X H)	340300140mm	360340145mm	400420145mm
Packaging size(D X W X H)	450420245mm	470450255mm	530510255mm
Cooling way	Natural cooling
SPD protection	yes
Ground wire size	≥6mm2
